1.MBR Hybridization→ Significant improvement
　 in running costs & water quality

Adding BF to MBR aeration tank increases biological floc by developing granular sludge, which reduces clogging on the membrane surface and expands membrane life approximately six times.

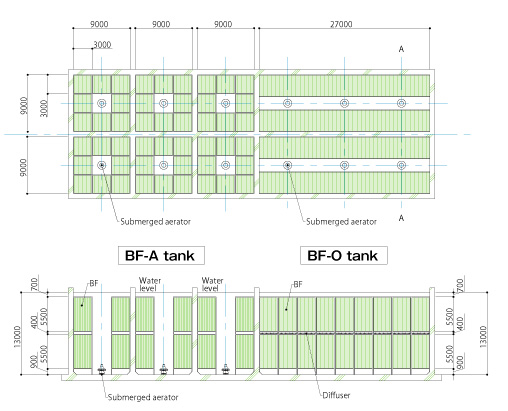

2.Deep aeration process→ Improvement of space
　 　 saving and efficiency

Discharge of 100,000m³/day, an aeration tank with 13m depth requires the tank capacity as shown below.

　　　
　Space saving = HRT 1/4×Water depth effect
　　1/3 = 1/12

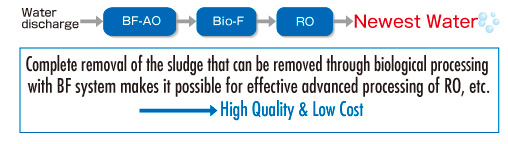

3.Newest Water

　



4.Aerobic granule super-high level MLSS
　　technology

BF has the ability to generate aerobic granules, which allows a super-high level of MLSS operation at 30,000mg/L (target)

　

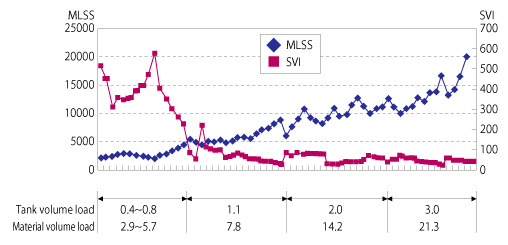

　　　　　　The chart above shows the relation among BOD material volume load,
　　　　　　MLSS and SVI
